| Measuring Principle : Thermal Mass Flow (Insertion) | Application : Utility and process gases and gas mixtures in circular piping or rectangular ducts |
| Size Range : DN80-1500 (3"-60") | Brand : Endress+Hauser |
File Download
| MEASURING PRINCIPLE |

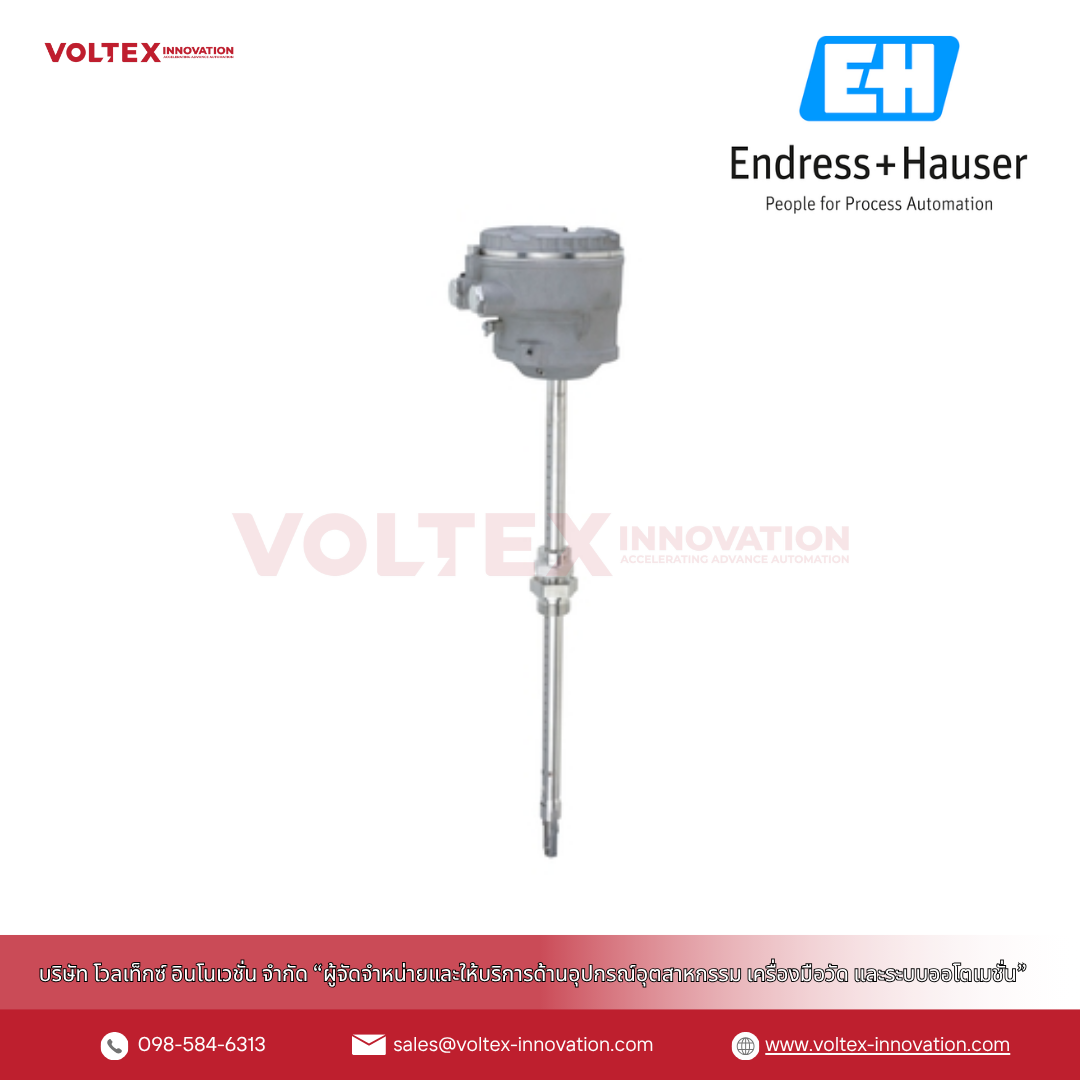

| Insertion thermal mass flowmeter with direct mass flow measurement and a high operable flow range. The patented sensor design compensates in real time for changes in temperature, pressure, flow direction and gas type. Bidirectional measurement with reverse flow detection. The remote transmitter maximizes installation flexibility and operational safety in demanding environments. |
| APPLICATION |
| Measurement of utility and process gases and gas mixtures in circular piping or rectangular ducts. |
| SIZE RANGE |
| DN Sizes : DN 80 to DN 1500 (3" to 60") |
| PROCESS CONDITIONS |
| Temperature Range : -40°C to +180°C (-40°F to +356°F) |
| Pressure Range : -0.5 to 20 bar g (-7.25 to 290 psi g) |
| WETTED MATERIALS |
| Insertion Tube : Stainless steel 1.4404 (316/316L) |
| Process Coupling : Stainless steel 1.4404 (316/316L) |
| Clamping Rings : PEEK, PVDF or stainless steel 1.4404 (316/316L) |
| Flat Ring Seal : EPDM or FKM |
| Transmitter Housing : Aluminium (coated) or polycarbonate |
| KEY FEATURES |
| • Patented drift-free sensor, SIL 2 |
| • Premium accuracy: 1.0% of reading (10-100% of full scale) |
| • Flexible programming with 21 standard gases or freely definable gas mixtures |
| • Detection of process disturbances and reverse flow |
| • Flexible installation for circular pipes and rectangular ducts |
| • Remote transmitter version with up to 4 I/Os and standard cable between sensor and transmitter |
| • Backlit touch display with WLAN access |
| • Integrated verification with Heartbeat Technology |
| Brand : Endress+Hauser |
| Product Family : Proline t-mass |
