| Measuring Principle : Coriolis (Mass Flow) | Application : Liquids and gases in a wide range of standard applications |
| Size Range : DN8-80 (⅜"-3") | Brand : Endress+Hauser |
File Download
| MEASURING PRINCIPLE |

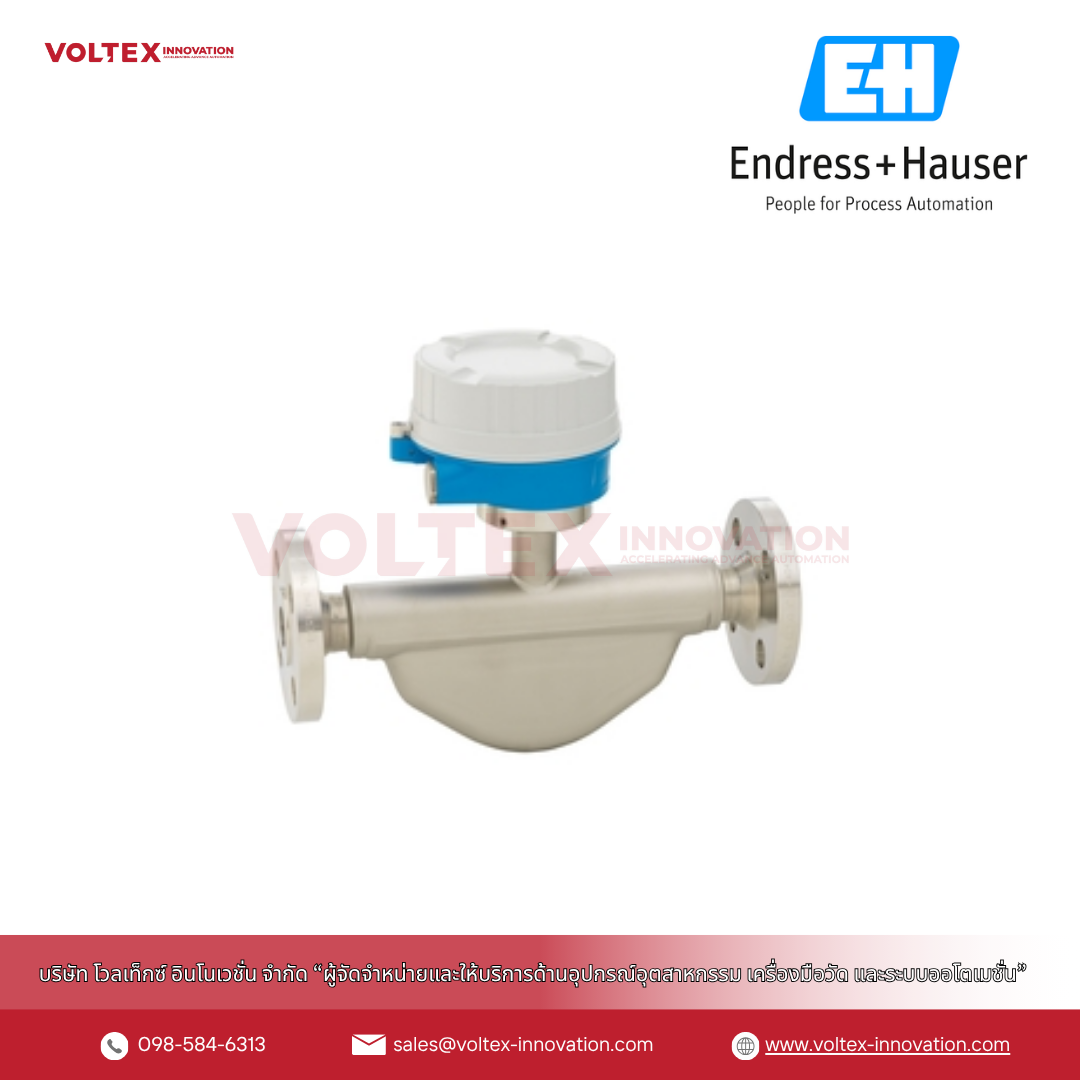

| Mid-range Coriolis flowmeter with a compact dual-tube sensor. The remote transmitter maximizes installation flexibility and operational safety in demanding environments. The measuring principle operates independently of physical fluid properties such as viscosity or density. Multivariable measurement: mass flow, density and temperature. |
| APPLICATION |
| Accurate measurement of liquids and gases for a wide range of standard applications in various industries. |
| SIZE RANGE |
| DN Sizes : DN 8 to DN 80 (⅜" to 3") |
| PROCESS CONDITIONS |
| Temperature Range : -40°C to +150°C (-40°F to +302°F) |
| Pressure Range : PN 100 / Class 600 / 63K (process pressure up to 100 bar / 1450 psi) |
| WETTED MATERIALS |
| Measuring Tube : 1.4539 (904L) |
| Connection : 1.4404 (316/316L) |
| Sensor Housing : 1.4301 (304), corrosion resistant |
| Transmitter Housing : Aluminium AlSi10Mg (coated), cast stainless steel 1.4409 (CF3M) or polycarbonate |
| KEY FEATURES |
| • Accuracy: mass flow (liquid) ±0.15 % standard, ±0.10 % option; mass flow (gas) ±0.50 % |
| • Density accuracy (liquid) ±0.0005 g/cm³ |
| • Measuring range 0 to 180 000 kg/h (0 to 6615 lb/min) |
| • Cost-effective multipurpose device, an alternative to conventional volumetric flowmeters |
| • Fewer process measuring points with multivariable measurement (flow, density, temperature) |
| • Space-saving installation, no in-/outlet run needs |
| • Remote transmitter with up to 4 I/Os and standard cable between sensor and transmitter, backlit touch display with WLAN access |
| • Integrated verification with Heartbeat Technology |
| Brand : Endress+Hauser |
| Product Family : Proline Promass |
