Endress+Hauser

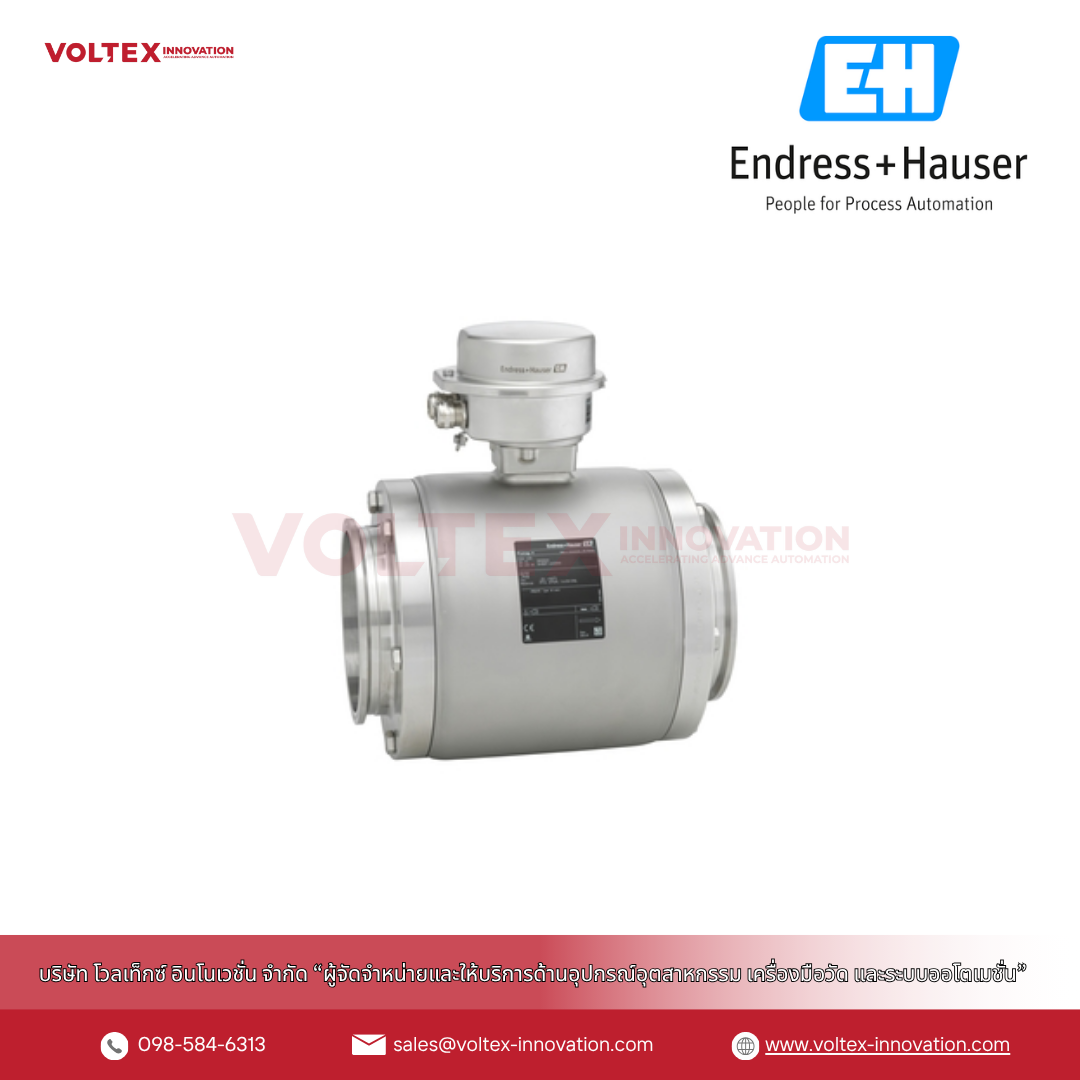

| Measuring Principle: Electromagnetic | Application: Hygienic applications in the food and beverage and life sciences industries |
| Size Range: DN 2 to 150 (1/12" to 6") | Brand: Endress+Hauser |
File Download
| MEASURING PRINCIPLE |
| Principle: Electromagnetic flow measurement, bidirectional, virtually independent of pressure, density, temperature and viscosity |
| APPLICATION |
| Demanding hygienic applications in the food and beverage and life sciences industries |
| SIZE RANGE / CONNECTIONS |
| Nominal diameter: DN 2 to 150 (1/12" to 6") |
| Process connections: numerous hygienic process connections |
| PROCESS CONDITIONS |
| Medium temperature: –20 to +150 °C (–4 to +302 °F) |
| Max. process pressure: PN 40 / Class 150 / 20K |
| WETTED MATERIALS |
| Liner: PFA |
| Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum |
| Process connections: stainless steel 1.4404 (F316L); PVDF; PVC adhesive sleeve |
| Seals: O-ring seal (EPDM, FKM, Kalrez); aseptic molded seal (EPDM, FKM, silicone) |
| Grounding rings: stainless steel 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum |
| KEY FEATURES |
| Volume flow accuracy: ±0.5 % o.r. ± 1 mm/s (standard), ±0.2 % o.r. ± 2 mm/s (option) |
| Measuring range: 0.06 dm³/min to 600 m³/h (0.015 to 2,650 gal/min) |
| Multivariable measurement: flow, temperature and conductivity, with integrated temperature measurement |
| Hygienic design: stainless steel sensor housing, wetted materials CIP and SIP cleanable |
| Installation: 0 x DN inlet run with constant accuracy independent of flow profile |
| No pressure loss: no cross-section constriction, no moving parts |
| Ultra-compact transmitter: full functionality on the smallest footprint, local display available |
| Operation: integrated web server, no additional software or hardware needed |
| Heartbeat Technology: integrated verification |
| Brand / Product Family |
| Brand: Endress+Hauser |
| Product family: Proline Promag |
