| Measuring Principle : Free-space Radar, 80 GHz | Application : Basic level measurement in basins, sewers, pump stations, tanks and silos |
| Measuring Range : Up to 30 m (98.4 ft) | Brand : Endress+Hauser |
File Download
| MEASURING PRINCIPLE |

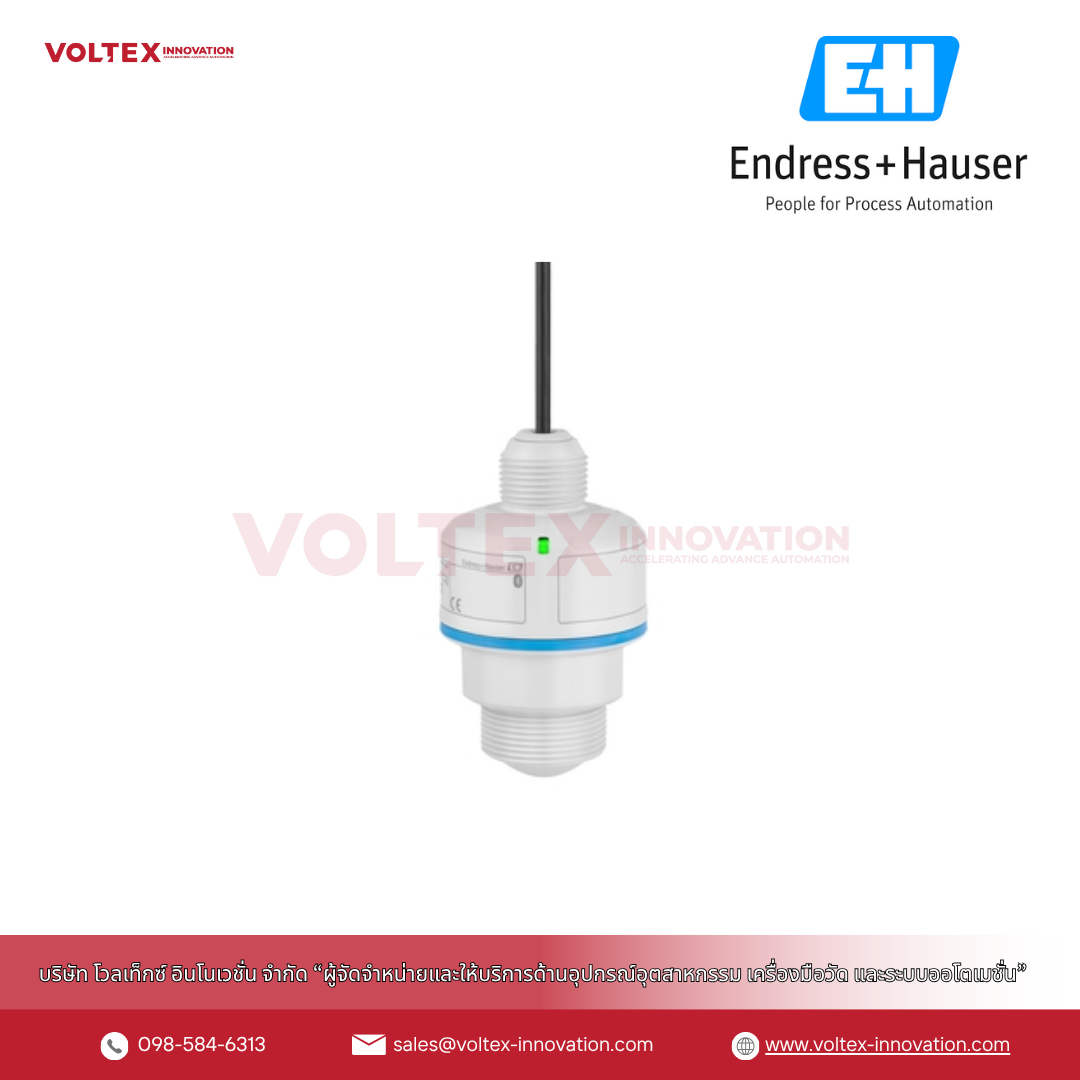

| Non-contact free-space radar level sensor using 80 GHz (W-band) technology, for basic applications. Bluetooth connectivity allows easy, encrypted wireless remote access. |
| APPLICATION |
| Open basins, river monitoring, sewer management, pump and lift stations, open channel flow, IBC and storage tanks, silos, stockpiles and pneumatic conveying. |
| MEASURING RANGE / CONNECTIONS |
| Measuring Range (40 mm antenna) : up to 20 m (65.6 ft) |
| Measuring Range (80 mm antenna) : up to 30 m (98.4 ft) |
| Frequency : approx. 80 GHz (W-band) |
| Process Connections (thread) : G1", NPT 1", G1½", NPT 1½" |
| Process Connections (flange) : UNI 2", 3", 4" and UNI slip-on 3", 4", 6" |
| PROCESS CONDITIONS |
| Temperature Range : -40°C to +80°C (-40°F to +176°F) |
| Pressure Range : -1 to 3 bar (-14.5 to 43 psi) |
| WETTED MATERIALS |
| Antenna : PVDF |
| Process Connection : PBT/PC |
| Transmitter Housing : PBT/PC |
| KEY FEATURES |
| • Accuracy ±2 mm (0.08") for liquids, ±4 mm (0.16") for solids |
| • Bluetooth connectivity with encrypted wireless access |
| • Guided setup wizards for quick commissioning |
| • Compact design for narrow installations |
| • On-demand verification with Heartbeat Technology |
| Brand : Endress+Hauser |
| Product Family : Micropilot |
