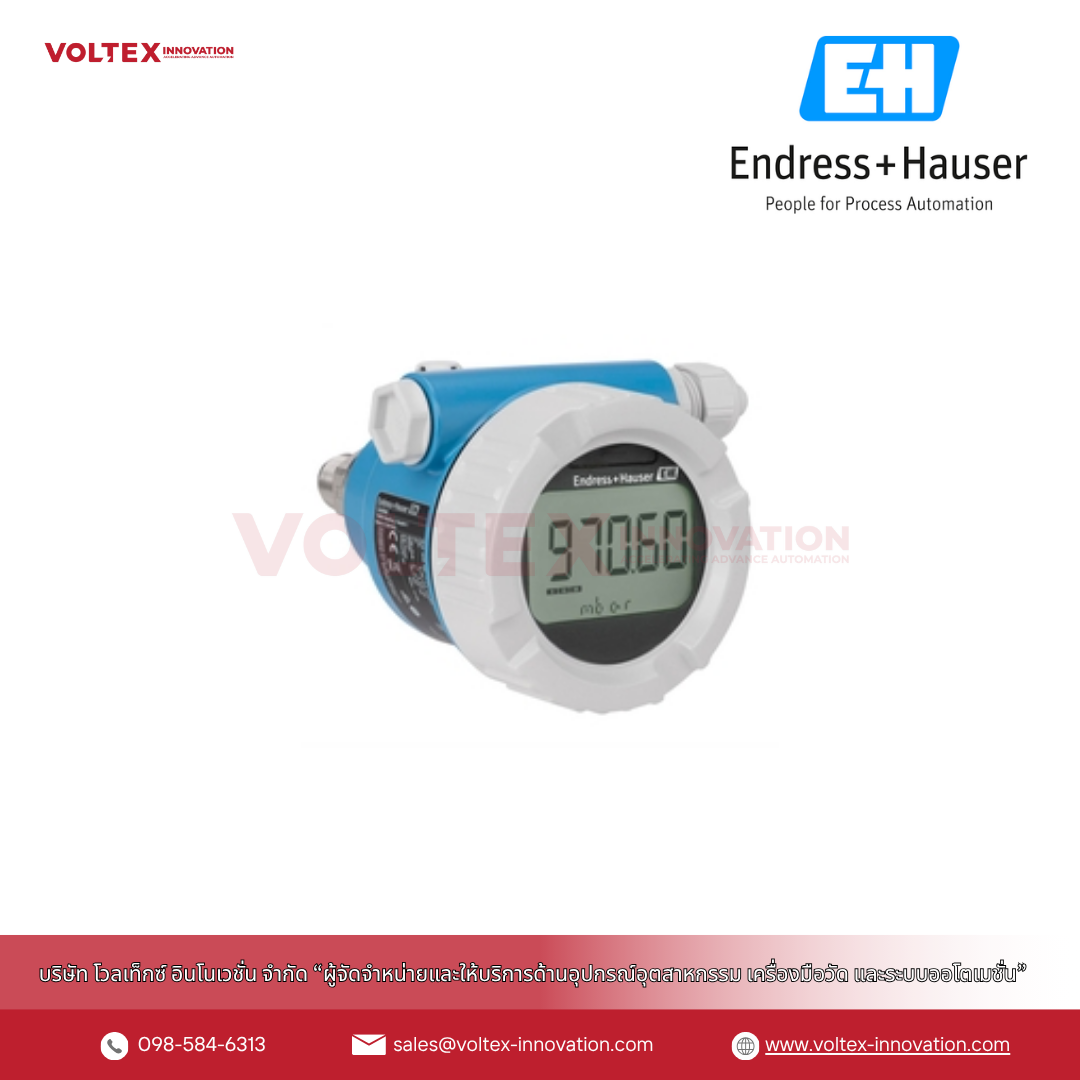

| Measuring Principle : Capacitive cell with ceramic (Ceraphire) process membrane | Application : Pressure in gases, steam and liquids, plus level and volume |
| Measuring Range : 100 mbar to 40 bar (1.5 to 580 psi) | Brand : Endress+Hauser |
File Download
| MEASURING PRINCIPLE |
| Measuring Principle : Capacitive measuring cell with ceramic (Ceraphire) process membrane; capacitance changes as the membrane deflects |
| Design : Oil-free, pressure acts directly on the membrane |
| APPLICATION |
| Main Application : Absolute and gauge pressure measurement in gases, steam or liquids in all areas of process engineering |
| Application : Level, volume and mass measurement in liquids |
| MEASURING RANGE / CONNECTIONS |
| Measuring Range : 100 mbar to 40 bar (1.5 to 580 psi) |
| Maximum Overload : 60 bar (870 psi) |
| Accuracy Standard : ±0.10% of set span |
| Accuracy Platinum : ±0.075% |
| Long-Term Stability : Typically ±0.10 to 0.20% per year |
| Turn-Down Ratio : Up to 100:1 |
| Process Connections : Thread |
| Process Connections : EN flanges (DN25 to DN80), ANSI flanges (1 to 4") and JIS flanges (50A to 100A) |
| Process Connections : Flush hygienic connections |
| PROCESS CONDITIONS |
| Temperature : -20 to 130 °C (-4 to 266 °F) |
| Short-Term Temperature : Up to 150 °C (302 °F) for max. 60 min |
| WETTED MATERIALS |
| Process Membrane : Ultrapure ceramic (99.9% Al₂O₃) |
| Other Wetted Parts : Stainless steel (standard) or PVDF (option) |
| KEY FEATURES |
| • Very good reproducibility and long-term stability |
| • Turn-down ratio up to 100:1 |
| • Uniform platform with Deltabar M and Deltapilot M for differential and hydrostatic pressure |
| Brand : Endress+Hauser |
| Product Family : Cerabar |
