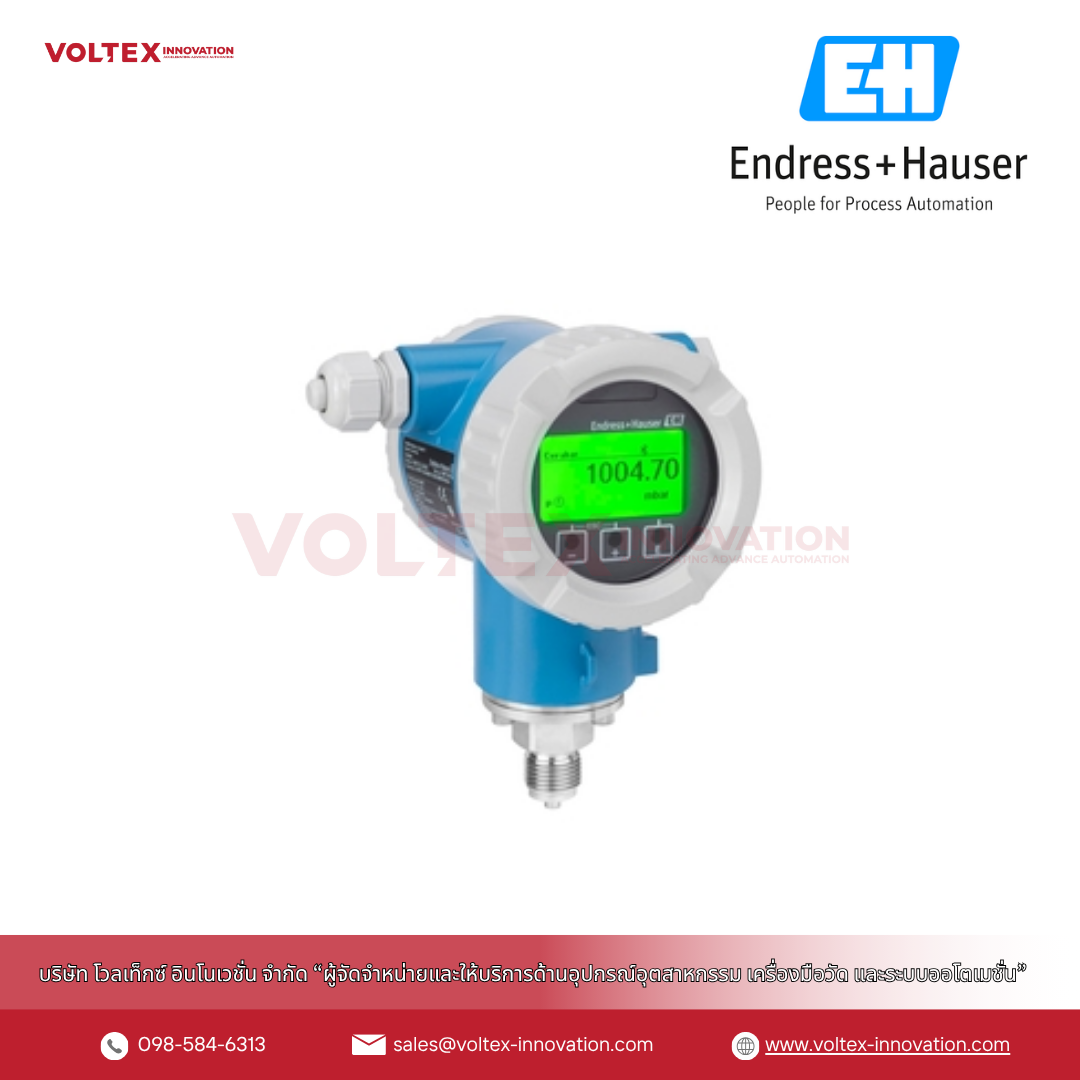

| Measuring Principle : Capacitive, oil-free ceramic measuring cell | Application : Pressure, level, volume or mass measurement of liquids and gases in process and hygienic applications |
| Measuring Range : 100 mbar to 40 bar (1.5 to 580 psi) | Brand : Endress+Hauser |
File Download
| MEASURING PRINCIPLE |
| Principle : Capacitive, oil-free ceramic measuring cell (Ceraphire) |
| Membrane : Ceramic, vacuum-proof with integrated breakage detection |
| Accuracy : Standard 0.05% / Platinum up to 0.025% |
| APPLICATION |
| Application : Pressure, level, volume or mass measurement of liquids and gases in process and hygienic applications |
| MEASURING RANGE / CONNECTIONS |
| Measuring Range : 100 mbar to 40 bar (1.5 to 580 psi), gauge / absolute |
| Thread Connections : G1/2 to G2, R1/2, MNPT1/2 to MNPT2 |
| Flanges : DN25 to DN80 |
| Hygienic Connections : Tri-Clamp, DIN 11851, Varivent NSM, SRD |
| PROCESS CONDITIONS |
| Process Temperature : -40 to +150 °C (-40 to +302 °F) |
| Ambient Temperature : -40 to +85 °C (-40 to +185 °F) |
| WETTED MATERIALS |
| Materials : Ceramic (Ceraphire), 316L, Alloy C, Monel, PVDF (options) |
| Housing : Die-cast aluminum or AISI 316L stainless steel |
| KEY FEATURES |
| Output : 4-20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus |
| Safety : SIL2/3 |
| Highlights : Modular design, adjustable measuring range, HistoROM data management |
| Approvals : ATEX, FM, CSA, IECEx, JPN Ex, INMETRO, NEPSI, EAC, Marine (GL/ABS), NSF drinking water |
| Brand : Endress+Hauser |
| Product Family : Cerabar |
